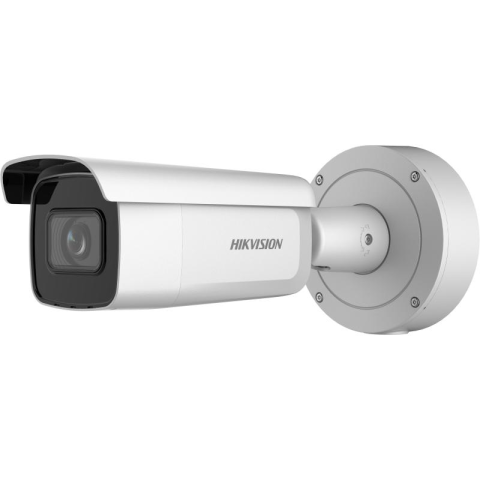

DS-2CD3686G2-IZS(7-35mm)(H)

SSN LLC · Equipment

DS-2CD3686G2-IZS(7-35mm)(H)

Indicative price

165 600 AMD

Out of stock

A manager will confirm price, availability and delivery time. Installation and configuration are quoted separately.

Discuss your projectSelect in shop

Specifications

1/1.8" Progressive Scan CMOS Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR Auto-iris Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional 2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 4 streams; H.265+/H.265/H.264+/H.264/MJPEG; BLC,HLC,3D DNR,Defog WDR 120DB Alarm:(G2)1/1,(G2T)2/2 Audio:1/1, (G2T)Power Output,12 VDC, max. 100 mA DC12V&PoE; Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB (G2)IP66,(G2T)IP67; IK10; Y:Nema 4X

1/1.8" Progressive Scan CMOS
Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Auto-iris
Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35
mm optional
2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 ×
1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 ×
720)
4 streams;
H.265+/H.265/H.264+/H.264/MJPEG;
BLC,HLC,3D DNR,Defog
WDR 120DB
Alarm:(G2)1/1,(G2T)2/2
Audio:1/1,
(G2T)Power Output,12 VDC, max. 100 mA
DC12V&PoE;
Built-in memory card slot, support
microSD/microSDHC/microSDXC card, up to 512 GB
(G2)IP66,(G2T)IP67;
IK10;
Y:Nema 4X
