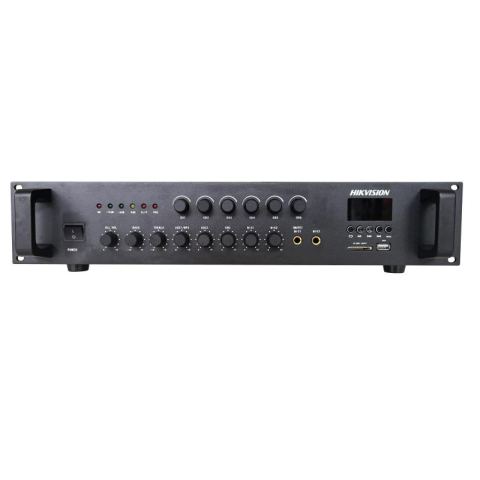

DS-QAE0A240G1-VB6

Specifications

240W 6-Zone Analog Amplifier The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input, and 2 microphone inputs; 1 auxiliary output, capable of cascading to the next power amplifier. Microphone 1/2, emergency line input, and line 1/2 can be independently adjusted, and it also has total volume control. Built in Bluetooth/MP3 function module for content playback on the phone. Equipped with six independent volume adjustment output functions. 5. Mic 1 and emergency line EMC inputs have the highest priority level, while Mic 1 and EMC have mixed outputs that can strongly cut other audio input signals. Mic 2, Line 1, Line 2, and MP3 (Bluetooth/radio/SD/USB) have mixed output. Equipped with high and low frequency adjustment function. Equipped with advanced short-circuit, overheating, and overload protection functions.

240W 6-Zone Analog Amplifier
The device has 2 auxiliary (AUX) line inputs, 1 emergency
(EMC) input, and 2 microphone inputs; 1 auxiliary output,
capable of cascading to the next power amplifier.
Microphone 1/2, emergency line input, and line 1/2 can be
independently adjusted, and it also has total volume
control.
Built in Bluetooth/MP3 function module for content playback
on the phone.
Equipped with six independent volume adjustment output
functions.
5. Mic 1 and emergency line EMC inputs have the highest
priority level, while Mic 1 and EMC have mixed outputs that
can strongly cut other audio input signals.
Mic 2, Line 1, Line 2, and MP3 (Bluetooth/radio/SD/USB) have
mixed output.
Equipped with high and low frequency adjustment function.
Equipped with advanced short-circuit, overheating, and
overload protection functions.
