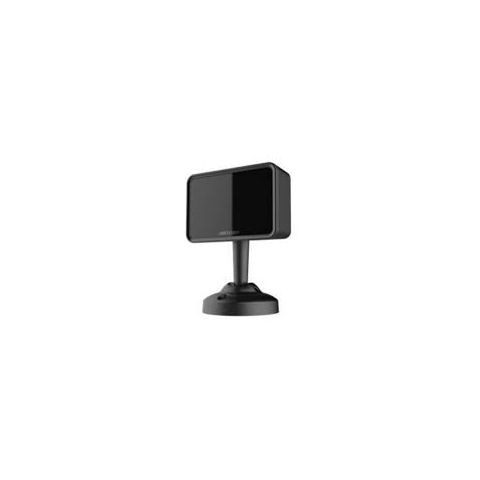

AE-VC154T-IT(6mm)

Indicative price

25 000 AMD

Supplier stock · subject to confirmation

A manager will confirm price, availability and delivery time. Installation and configuration are quoted separately.

Specifications

Image Sensor ： Progressive Scan CMOS Min. Illumination： 0 Lux with IR Shutter Speed：1/30s ~1/50,000s Lens：E10 6mm; M8 cable length：300mm adjustable angle：bracket: front and back：0~50°；left and right 0~5°，rotate 0~360° Day and night conversion mode: infrared normally open, image often black and white frame rate：720p@25fps SNR：42dB External interface： Audio in：no Audio out：93dB Working temperature and humidity: -40℃~85℃，90% Power supply：DC6V-16V IR range：3m Power consumption：2.5W MAX Dimensions(except bracket)：66(L)×45(W)×24(H)mm

Image Sensor ： Progressive Scan CMOS
Min. Illumination： 0 Lux with IR
Shutter Speed：1/30s ~1/50,000s
Lens：E10 6mm; M8
cable length：300mm
adjustable angle：bracket: front and back：0~50°；left
and right 0~5°，rotate 0~360°
Day and night conversion mode: infrared normally open, image
often black and white
frame rate：720p@25fps
SNR：42dB
External interface：
Audio in：no
Audio out：93dB
Working temperature and humidity: -40℃~85℃，90%
Power supply：DC6V-16V
IR range：3m
Power consumption：2.5W MAX
Dimensions(except bracket)：66(L)×45(W)×24(H)mm
