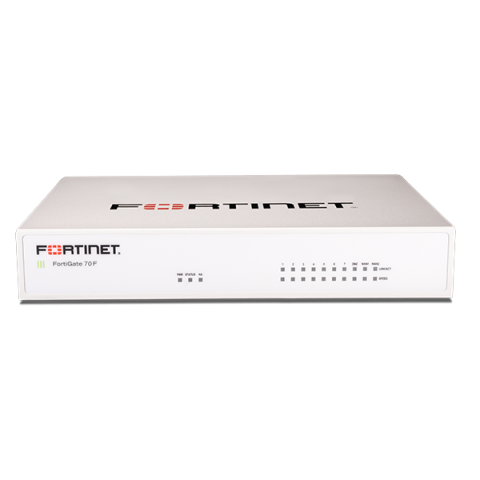

FortiGate 70F

Բնութագրեր

GE RJ45 WAN / DMZ Ports - 2/1 GE RJ45 Internal Ports - 5 GE RJ45 FortiLink Ports (Default) - 2 USB Ports -1 Console (RJ45) - 1 IPS Throughput 2 - 1.4 Gbps NGFW Throughput 2, 4 - 1 Gbps Threat Protection Throughput 2, 5 - 800 Mbps Firewall Throughput (1518 / 512 / 64 byte UDP packets) - 10/10/6 Gbps Firewall Latency (64 byte UDP packets) - 2.54 μs Firewall Throughput (Packets Per Second) - 9 Mpps Concurrent Sessions (TCP) - 1.5 M New Sessions/Second (TCP) - 35 000 Firewall Policies - 5000 IPsec VPN Throughput (512 byte) 1 - 6.1 Gbps Gateway-to-Gateway IPsec VPN Tunnels - 200 Client-to-Gateway IPsec VPN Tunnels - 500 SSL-VPN Throughput - 405 Mbps Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) - 200 SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 700 Mbps SSL Inspection CPS (IPS, avg. HTTPS) 3 - 500 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 100 000 Application Control Throughput (HTTP 64K) 2 -1.8 Gbps CAPWAP Throughput (HTTP 64K) - 8.5 Gbps Virtual Domains (Default / Maximum) - 10/10 Maximum Number of FortiSwitches Supported - 24 Maximum Number of FortiAPs (Total / Tunnel Mode) - 64/32 Maximum Number of FortiTokens - 500 High Availability Configurations - Active-Active, Active-Passive, Clustering

GE RJ45 WAN / DMZ Ports - 2/1
GE RJ45 Internal Ports - 5
GE RJ45 FortiLink Ports (Default) - 2
USB Ports -1
Console (RJ45) - 1
IPS Throughput 2 - 1.4 Gbps
NGFW Throughput 2, 4 - 1 Gbps
Threat Protection Throughput 2, 5 - 800 Mbps
Firewall Throughput (1518 / 512 / 64 byte UDP packets) -
10/10/6 Gbps
Firewall Latency (64 byte UDP packets) - 2.54 μs
Firewall Throughput (Packets Per Second) - 9 Mpps
Concurrent Sessions (TCP) - 1.5 M
New Sessions/Second (TCP) - 35 000
Firewall Policies - 5000
IPsec VPN Throughput (512 byte) 1 - 6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels - 200
Client-to-Gateway IPsec VPN Tunnels - 500
SSL-VPN Throughput - 405 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel
Mode) - 200
SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 - 500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 100
000
Application Control Throughput (HTTP 64K) 2 -1.8 Gbps
CAPWAP Throughput (HTTP 64K) - 8.5 Gbps
Virtual Domains (Default / Maximum) - 10/10
Maximum Number of FortiSwitches Supported - 24
Maximum Number of FortiAPs (Total / Tunnel Mode) - 64/32
Maximum Number of FortiTokens - 500
High Availability Configurations - Active-Active,
Active-Passive, Clustering
