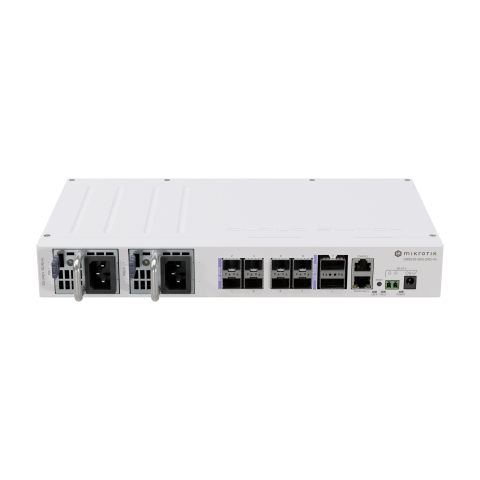

CRS510-8XS-2XQ-IN

Specifications

Architecture - MIPSBE CPU - QCA9531 CPU core count - 1 CPU nominal frequency - 650 MHz Switch chip model - 98DX4310 RouterOS license - 5 Operating System - RouterOS v7 Size of RAM - 128 MB Storage size - 32 MB Storage type - FLASH MTBF - Approximately 200'000 hours at 25C Tested ambient temperature - -40°C to 70°C Number of AC inputs - 2 AC input range - 100-240 Number of DC inputs - 3 (DC jack, PoE-IN, 2-pin terminal) DC jack input Voltage - 36-57 V Number of PSU slots - 2 2-pin terminal input Voltage - 36-57 V Frequency (Hz) - 47-63 Max power consumption - 45 W Max power consumption without attachments - 27 W PoE in - 802.3 bt Cooling type - 2 fans PoE in input Voltage - 42.5-57 V 10/100 Ethernet ports - 1 Number of 25G SFP28 ports - 8 Number of 100G QSFP28 ports - 2 Serial console port - RJ45 PCB temperature monitor - Yes Voltage Monitor - Yes Certification - CE, EAC, ROHS IP20

Architecture - MIPSBE
CPU - QCA9531
CPU core count - 1
CPU nominal frequency - 650 MHz
Switch chip model - 98DX4310
RouterOS license - 5
Operating System - RouterOS v7
Size of RAM - 128 MB
Storage size - 32 MB
Storage type - FLASH
MTBF - Approximately 200'000 hours at 25C
Tested ambient temperature - -40°C to 70°C
Number of AC inputs - 2
AC input range - 100-240
Number of DC inputs - 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage - 36-57 V
Number of PSU slots - 2
2-pin terminal input Voltage - 36-57 V
Frequency (Hz) - 47-63
Max power consumption - 45 W
Max power consumption without attachments - 27 W
PoE in - 802.3 bt
Cooling type - 2 fans
PoE in input Voltage - 42.5-57 V
10/100 Ethernet ports - 1
Number of 25G SFP28 ports - 8
Number of 100G QSFP28 ports - 2
Serial console port - RJ45
PCB temperature monitor - Yes
Voltage Monitor - Yes
Certification - CE, EAC, ROHS
IP20
