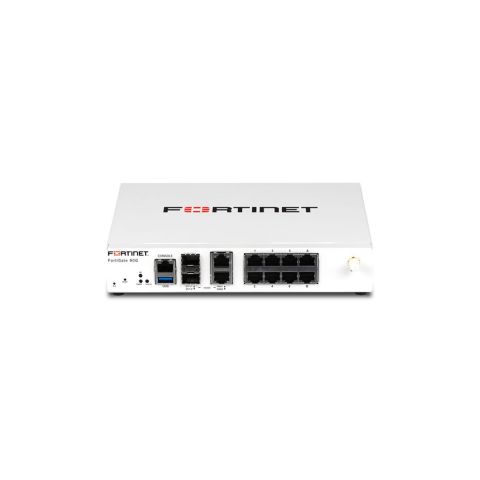

FortiGate 90G

Indicative price

Price on request

Out of stock

A manager will confirm price, availability and delivery time. Installation and configuration are quoted separately.

Specifications

10/5/2.5/GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs - 2 GE RJ45 Internal Ports - 8 USB Ports - 1 Console (RJ45) - 1 IPS Throughput 2 - 4.5 Gbps NGFW Throughput 2, 4 - 2.5 Gbps Threat Protection Throughput 2, 5 - 2.2 Gbps Firewall Throughput (1518 / 512 / 64 byte UDP packets) - 28/28/27.9 Firewall Latency (64 byte UDP packets) - 3.23 μs Firewall Throughput (Packets Per Second) - 41.85 Mpps Concurrent Sessions (TCP) - 3 M New Sessions/Second (TCP) - 124 000 Firewall Policies - 5000 IPsec VPN Throughput (512 byte) 1 - 25 Gbps Gateway-to-Gateway IPsec VPN Tunnels - 200 Client-to-Gateway IPsec VPN Tunnels - 2500 SSL-VPN Throughput 6 - 1.4 Gbps Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) - 200 SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 2.6 Gbps SSL Inspection CPS (IPS, avg. HTTPS) 3 - 1400 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 300 000 Application Control Throughput (HTTP 64K) 2 - 6.7 Gbps CAPWAP Throughput (HTTP 64K) - 23.6 Gbps Virtual Domains (Default / Maximum) - 10 / 10 Maximum Number of FortiSwitches Supported - 24 Maximum Number of FortiAPs (Total / Tunnel Mode) - 128/64 Maximum Number of FortiTokens - 500 High Availability Configurations - Active-Active, Active-Passive, Clustering

10/5/2.5/GE RJ45 or 10GE/GE SFP+/
SFP Shared Media pairs - 2
GE RJ45 Internal Ports - 8
USB Ports - 1
Console (RJ45) - 1
IPS Throughput 2 - 4.5 Gbps
NGFW Throughput 2, 4 - 2.5 Gbps
Threat Protection Throughput 2, 5 - 2.2 Gbps
Firewall Throughput (1518 / 512 / 64 byte UDP packets) -
28/28/27.9
Firewall Latency (64 byte UDP packets) - 3.23 μs
Firewall Throughput (Packets Per Second) - 41.85 Mpps
Concurrent Sessions (TCP) - 3 M
New Sessions/Second (TCP) - 124 000
Firewall Policies - 5000
IPsec VPN Throughput (512 byte) 1 - 25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels - 200
Client-to-Gateway IPsec VPN Tunnels - 2500
SSL-VPN Throughput 6 - 1.4 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel
Mode) - 200
SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 2.6 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 - 1400
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 300
000
Application Control Throughput (HTTP 64K) 2 - 6.7 Gbps
CAPWAP Throughput (HTTP 64K) - 23.6 Gbps
Virtual Domains (Default / Maximum) - 10 / 10
Maximum Number of FortiSwitches Supported - 24
Maximum Number of FortiAPs (Total / Tunnel Mode) - 128/64
Maximum Number of FortiTokens - 500
High Availability Configurations - Active-Active,
Active-Passive, Clustering
