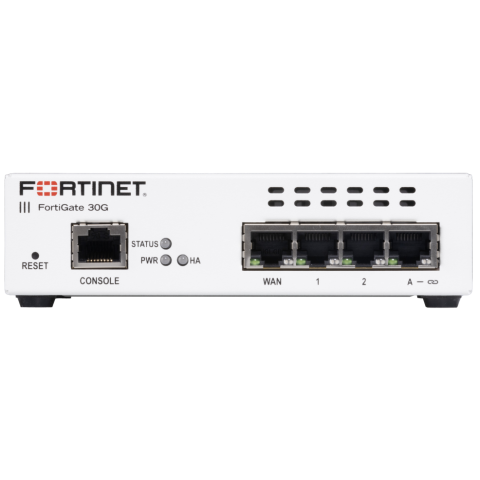

FortiGate 30G

Indicative price

Price on request

Out of stock

A manager will confirm price, availability and delivery time. Installation and configuration are quoted separately.

Specifications

Hardware Accelerated GE WAN Port - 1 Hardware Accelerated GE RJ45 Ports - 2 Hardware Accelerated GE RJ45 FortiLink Port (Default) - 1 Console Port (RJ45) - 1 IPS Throughput 2 - 800 Mbps NGFW Throughput 2, 4 - 570 Mbps Threat Protection Throughput 2, 5 - 500 Mbps IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) - 4/ 4/ 3.9 Gbps IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) - 4/ 4/ 3.9 Gbps Firewall Latency (64 byte UDP packets) - 2.87 μs Firewall Throughput (Packets Per Second) - 5.85 Mpps Concurrent Sessions (TCP) - 600 000 New Sessions/Second (TCP) - 30 000 Firewall Policies - 2000 IPsec VPN Throughput (512 byte) 1 - 3.5 Gbps Gateway-to-Gateway IPsec VPN Tunnels - 200 Client-to-Gateway IPsec VPN Tunnels - 250 SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 400 Mbps SSL Inspection CPS (IPS, avg. HTTPS) 3 - 260 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 55 000 Application Control Throughput (HTTP 64K) 2 - 830 Mbps CAPWAP Throughput (HTTP 64K) - TBA Gbps Maximum Number of FortiSwitches Supported - 8 Maximum Number of FortiAPs (Total/Tunnel Mode) - 16/8 Maximum Number of FortiTokens - 500 High Availability Configurations - Active-Passive, Active-Active

Hardware Accelerated GE WAN Port - 1
Hardware Accelerated GE RJ45 Ports - 2
Hardware Accelerated GE RJ45 FortiLink Port (Default) - 1
Console Port (RJ45) - 1
IPS Throughput 2 - 800 Mbps
NGFW Throughput 2, 4 - 570 Mbps
Threat Protection Throughput 2, 5 - 500 Mbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) - 4/ 4/
3.9 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) - 4/ 4/
3.9 Gbps
Firewall Latency (64 byte UDP packets) - 2.87 μs
Firewall Throughput (Packets Per Second) - 5.85 Mpps
Concurrent Sessions (TCP) - 600 000
New Sessions/Second (TCP) - 30 000
Firewall Policies - 2000
IPsec VPN Throughput (512 byte) 1 - 3.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels - 200
Client-to-Gateway IPsec VPN Tunnels - 250
SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 400 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 - 260
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 55
000
Application Control Throughput (HTTP 64K) 2 - 830 Mbps
CAPWAP Throughput (HTTP 64K) - TBA Gbps
Maximum Number of FortiSwitches Supported - 8
Maximum Number of FortiAPs (Total/Tunnel Mode) - 16/8
Maximum Number of FortiTokens - 500
High Availability Configurations - Active-Passive,
Active-Active
