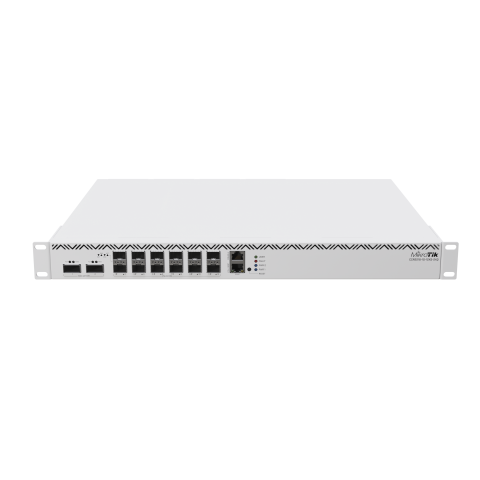

CCR2216-1G-12XS-2XQ

Indicative price

1 294 700 AMD

Supplier stock · subject to confirmation

A manager will confirm price, availability and delivery time. Installation and configuration are quoted separately.

Specifications

Architecture - ARM 64bit CPU - AL73400 core count - 16 nominal frequency - 2000 MHz CPU Threads count - 16 Switch chip model - 98DX8525 Dimensions - 443 x 367 x 44 mm RouterOS license - 6 Operating System - RouterOS v7 Size of RAM - 16 GB Storage size - 128 MB Storage type - NAND MTBF - Approximately 200'000 hours at 25C Tested ambient temperature -20°C to 60°C Number of AC inputs - 2 Max power consumption - 128 W Cooling type - 4 fans 10/100/1000 Ethernet ports - 1 Number of 25G SFP28 ports - 12 Number of 100G QSFP28 ports - 2 Serial console port - RJ45 Number of M.2 slots - 2 Certification - CE, EAC, ROHS

Architecture - ARM 64bit
CPU - AL73400
core count - 16
nominal frequency - 2000 MHz
CPU Threads count - 16
Switch chip model - 98DX8525
Dimensions - 443 x 367 x 44 mm
RouterOS license - 6
Operating System - RouterOS v7
Size of RAM - 16 GB
Storage size - 128 MB
Storage type - NAND
MTBF - Approximately 200'000 hours at 25C
Tested ambient temperature  -20°C to 60°C
Number of AC inputs - 2
Max power consumption - 128 W
Cooling type - 4 fans
10/100/1000 Ethernet ports - 1
Number of 25G SFP28 ports - 12
Number of 100G QSFP28 ports - 2
Serial console port - RJ45
Number of M.2 slots - 2
Certification - CE, EAC, ROHS
