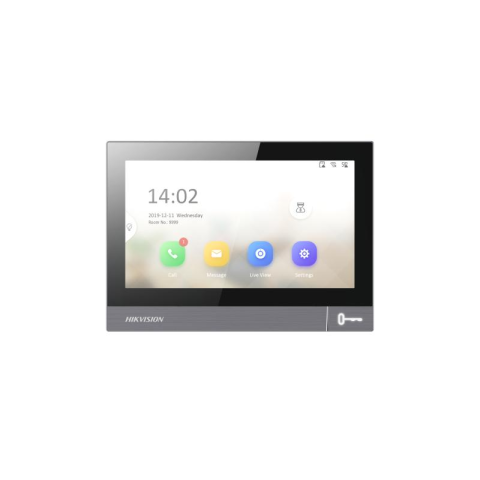

DS-KH8381-WTE1

Բնութագրեր

IP Indoor Station with 7" Touch-Screen and aluminum alloy plate & frame Colorful IPS LCD, display resolution: 1024 x 600; 10/100Mbps Ethernet, Wi-Fi 802.11b/g/n; TF card, max 128G 1 x physical button, 8-ch alarm input , 4 x relay, 1 x power out(Max. 12 VDC 0.5 A), 1xRS485 · Working conditions: Working temperature, -10°C to +50 °C; Working humidity, 10% to 90% (No condensing);Flush& surface&table mounting; Power supply standard 802.3at PoE/ 12 VDC, 1.5A. · Dimensions and net weight: 180.4 mm(W) x 128.4mm(H) x 21.8 mm(D), 420.0g;

IP Indoor Station with 7" Touch-Screen and aluminum alloy
plate & frame
Colorful IPS LCD, display resolution: 1024 x 600;
10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;
TF card, max 128G
1 x physical button, 8-ch alarm input , 4 x relay, 1 x power
out(Max. 12 VDC 0.5 A), 1xRS485
· Working conditions: Working temperature, -10°C to +50
°C; Working humidity, 10% to 90% (No condensing);Flush&
surface&table mounting; Power supply standard 802.3at PoE/
12 VDC, 1.5A.
· Dimensions and net weight: 180.4 mm(W) x 128.4mm(H) x
21.8 mm(D), 420.0g;
