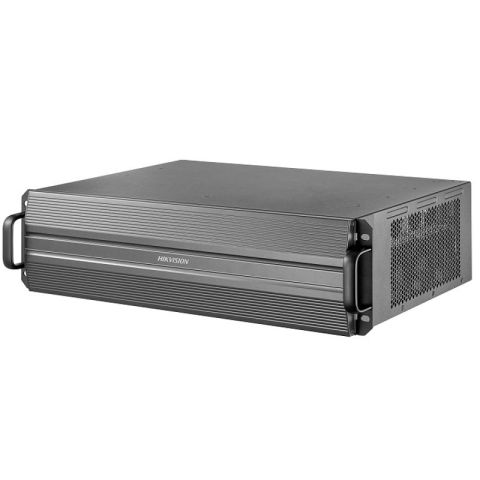

DS-6920UDI-U(C)

Բնութագրեր

● Adopts the 3 U standard rackmount chassis and ATCA chassis system for small to medium-sized surveillance. ● Adopts the plug-in modular design to provide flexible choice of model according to needs. ● Supports auto temperature adjustment of the intelligent fan to ensure system stability and reliability. ● Supports HDMI signal input and output. ● Supports the default H.265 encoding and H.264 encoding. ● Supports H.265, H.264, MJPEG and other mainstream encoding formats. ● Supports 4 channels of HD video encoding. ● Supports 160 channels of HD video decoding. ● Supports the maximum LED loading capacity of 2.6 MP per port. ● Supports 32 MP HD video decoding. ● Supports any splicing of 20 screens according to needs. ● Supports the division of 1, 4, 6, 8, 9, 16, and 25 per output port window. ● Supports opening a maximum of 320 windows on the video walls, opening a maximum of four 1080p layers or two 4K layers on a single screen, and floating windows. ● Supports live view of video wall. ● Supports up to 128 scenes. You can customize the video wall layout and save it as a scene. ● Supports up to 8 subtitles for the video wall controller and up to 3 subtitles for one video wall. ● Supports the access and operation via the mobile client (Android or iOS), PC client, and web client. ● Support using the ONVIF protocol to access devices for decoding.

● Adopts the 3 U standard rackmount chassis and ATCA
chassis system for small to medium-sized surveillance.
● Adopts the plug-in modular design to provide flexible
choice of model according to needs.
● Supports auto temperature adjustment of the intelligent
fan to ensure system stability and reliability.
● Supports HDMI signal input and output.
● Supports the default H.265 encoding and H.264 encoding.
● Supports H.265, H.264, MJPEG and other mainstream
encoding formats.
● Supports 4 channels of HD video encoding.
● Supports 160 channels of HD video decoding.
● Supports the maximum LED loading capacity of 2.6 MP per
port.
● Supports 32 MP HD video decoding.
● Supports any splicing of 20 screens according to needs.
● Supports the division of 1, 4, 6, 8, 9, 16, and 25 per
output port window.
● Supports opening a maximum of 320 windows on the video
walls, opening a maximum of four 1080p layers or two 4K
layers on a single screen, and floating windows.
● Supports live view of video wall.
● Supports up to 128 scenes. You can customize the video
wall layout and save it as a scene.
● Supports up to 8 subtitles for the video wall controller
and up to 3 subtitles for one video wall.
● Supports the access and operation via the mobile client
(Android or iOS), PC client, and web client.
● Support using the ONVIF protocol to access devices for
decoding.
