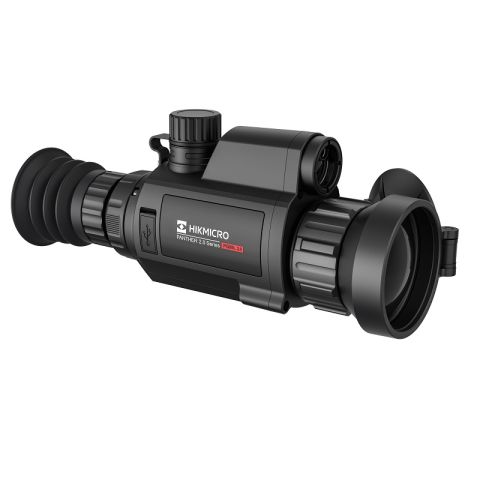

HM-TR26-50S1G/W-PQ50L 2.0

Բնութագրեր

Thermal Module Image Sensor Uncooled Focal Plane Arrays Max. Resolution 640x512 Frame Rate 50Hz Pixel Interval 12μm NETD Less than 20mK (25 °C, F#=1.0) Lens (Focal Length) 50mm Detection Range 2600m Min. Focusing Distance 5m Aperture F1.0 Magnification 2.6 × Field of View(H × V), Degrees / m @100m 8.80° × 7.03°/15.39m × 12.29m Image Display Display 1024x768, 0.39 inch, OLED Palettes Black Hot, White Hot, Red Hot, Fusion FFC (Flat Field Correction) Mode Auto, Manual, External Correction Exit Pupil 6mm Eye Relief 45mm Diopter (Range) -5D to 3D Brightness Adjustment Yes Tone Adjustment Cold, Warm System Record Video On-board Video Recording Capture Snapshot Yes Digital Zoom Continuous digital zooming, 1x-8x Standby Mode Yes Storage Built-in EMMC (16GB) PIP Yes DPC Yes Hotspot Yes Hot Track Yes Distance Measurement Yes Recoil-activation Recording Yes Audio Recording Yes Max. Recoil 1000g/0.4ms Power Supply Battery Type Replaceable and Rechargeable Li-ion Battery Battery Operating Time ≥5h (25 °C, with hotspot off) Type-C Power Supply 5V DC, 2 A Supports External Power Supply General Protection Level IP67 Dimension 226.81 mm x 73.34 mm x 87.10 mm Weight 585g without Battery Working Temperature -30 °C to +55 °C (-22 °F to 131°F) Laser Rangefinder Safety Class for Laser Class 1 Wavelength 905nm Max. Measuring Range 600m Measurement Accuracy ±1m Min. Measuring Range 10m

Thermal Module
Image Sensor
Uncooled Focal Plane Arrays
Max. Resolution
640x512
Frame Rate
50Hz
Pixel Interval
12μm
NETD
Less than 20mK (25 °C, F#=1.0)
Lens (Focal Length)
50mm
Detection Range
2600m
Min. Focusing Distance
5m
Aperture
F1.0
Magnification
2.6 ×
Field of View(H × V), Degrees / m @100m
8.80° × 7.03°/15.39m × 12.29m
Image Display
Display
1024x768, 0.39 inch, OLED
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode
Auto, Manual, External Correction
Exit Pupil
6mm
Eye Relief
45mm
Diopter (Range)
-5D to 3D
Brightness Adjustment
Yes
Tone Adjustment
Cold, Warm
System
Record Video
On-board Video Recording
Capture Snapshot
Yes
Digital Zoom
Continuous digital zooming, 1x-8x
Standby Mode
Yes
Storage
Built-in EMMC (16GB)
PIP
Yes
DPC
Yes
Hotspot
Yes
Hot Track
Yes
Distance Measurement
Yes
Recoil-activation Recording
Yes
Audio Recording
Yes
Max. Recoil
1000g/0.4ms
Power Supply
Battery Type
Replaceable and Rechargeable Li-ion Battery
Battery Operating Time
≥5h (25 °C, with hotspot off)
Type-C Power Supply
5V DC, 2 A
Supports External Power Supply
General
Protection Level
IP67
Dimension
226.81 mm x 73.34 mm x 87.10 mm
Weight
585g without Battery
Working Temperature
-30 °C to +55 °C (-22 °F to 131°F)
Laser Rangefinder
Safety Class for Laser
Class 1
Wavelength
905nm
Max. Measuring Range
600m
Measurement Accuracy
±1m
 Min. Measuring Range
10m
