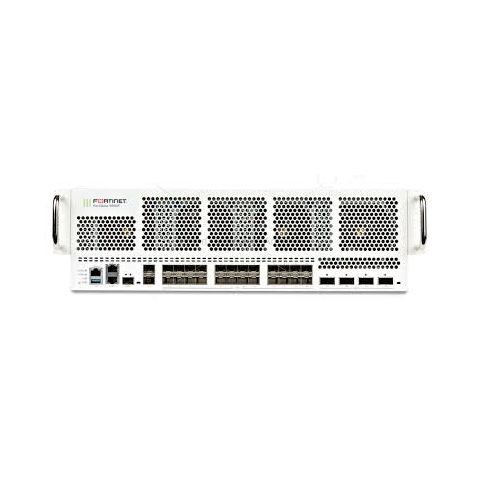

FortiGate 3700F

Բնութագրեր

Hardware Accelerated 400GE QSFP-DD/ 200GE QSFP56/ 100GE QSFP28/ 40GE QSFP+ Ports - 4 Hardware Accelerated 50 GE SFP56/25 GE SFP28/ 10 GE SFP+ Ports - 18 Hardware Accelerated 25 GE SFP28/ 10 GE SFP+/ GE SFP ULL Ports - 4 Hardware Accelerated 50 GE SFP56/ 25 GE SFP28/ 10 GE SFP+/1 GE HA1/HA2 Ports - 2 10GE/ GE RJ45 Management Ports - 2 USB Ports (Client / Server) - 1/1 Console Port - 1 Included Transceivers - 2x SFP+ (SR 10 GE) IPS Throughput 2 - 86 Gbps NGFW Throughput 2, 4 - 80 Gbps Threat Protection Throughput 2, 5 - 75 Gbps IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) - 589/589/420 Gbps IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)- 589/589/420 Gbps Firewall Latency (64 byte, UDP) - 3.56 μs / 1.45 μs* Firewall Throughput (Packet per Second) - 630 Mpps Concurrent Sessions (TCP) - 140 Million New Sessions/Second (TCP) - 930 000 Firewall Policies - 200 000 IPsec VPN Throughput (512 byte) 1 - 160 Gbps Gateway-to-Gateway IPsec VPN Tunnels - 40 000 Client-to-Gateway IPsec VPN Tunnels - 200 000 SSL-VPN Throughput - 16 Gbps Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) - 30 000 SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 55 Gbps SSL Inspection CPS (IPS, avg. HTTPS) 3 - 57 000 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 15 Million Application Control Throughput (HTTP 64K) 2 - 190 Gbps CAPWAP Throughput (HTTP 64K) - 65 Gbps Virtual Domains (Default / Maximum) - 10/500 Maximum Number of FortiSwitches Supported - 300 Maximum Number of FortiAPs (Total / Tunnel) - 4096 / 2048 Maximum Number of FortiTokens - 20 000 High Availability Configurations - Active-Active, Active-Passive, Clustering Operating Altitude Up to 10 000 ft (3048 m)

Hardware Accelerated 400GE QSFP-DD/ 200GE QSFP56/ 100GE
QSFP28/ 40GE QSFP+ Ports - 4
Hardware Accelerated 50 GE SFP56/25 GE SFP28/ 10 GE SFP+
Ports - 18
Hardware Accelerated 25 GE SFP28/ 10 GE SFP+/ GE SFP ULL
Ports - 4
Hardware Accelerated 50 GE SFP56/ 25 GE SFP28/ 10 GE SFP+/1
GE HA1/HA2 Ports - 2
10GE/ GE RJ45 Management Ports - 2
USB Ports (Client / Server) - 1/1
Console Port - 1
Included Transceivers - 2x SFP+ (SR 10 GE)
IPS Throughput 2 - 86 Gbps
NGFW Throughput 2, 4 - 80 Gbps
Threat Protection Throughput 2, 5 - 75 Gbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) -
589/589/420 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)-
589/589/420 Gbps
Firewall Latency (64 byte, UDP) - 3.56 μs / 1.45 μs*
Firewall Throughput (Packet per Second) - 630 Mpps
Concurrent Sessions (TCP) - 140 Million
New Sessions/Second (TCP) - 930 000
Firewall Policies - 200 000
IPsec VPN Throughput (512 byte) 1 - 160 Gbps
Gateway-to-Gateway IPsec VPN Tunnels - 40 000
Client-to-Gateway IPsec VPN Tunnels - 200 000
SSL-VPN Throughput - 16 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)
- 30 000
SSL Inspection Throughput (IPS, avg. HTTPS) 3 - 55 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 - 57 000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 - 15
Million
Application Control Throughput (HTTP 64K) 2 - 190 Gbps
CAPWAP Throughput (HTTP 64K) - 65 Gbps
Virtual Domains (Default / Maximum) - 10/500
Maximum Number of FortiSwitches Supported - 300
Maximum Number of FortiAPs (Total / Tunnel) - 4096 / 2048
Maximum Number of FortiTokens - 20 000
High Availability Configurations - Active-Active,
Active-Passive, Clustering
Operating Altitude Up to 10 000 ft (3048 m)
