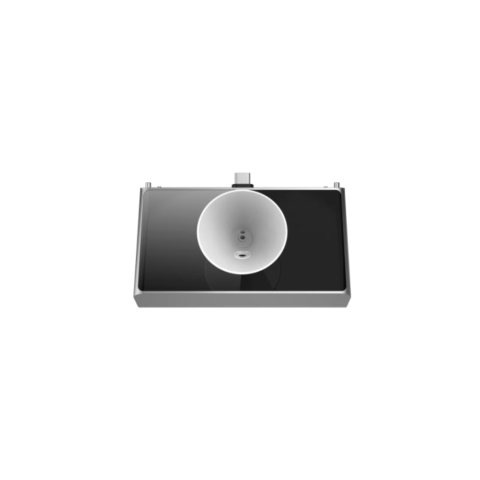

DS-KAB673-A

Բնութագրեր

DS-KAB673-A alcohol detection module, used with DS-K1T673 Series Face Recognition Terminal for alcohol detection Sensor։ Electrochemical alcohol sensor Measurement mode։ Non-contact measurement Data interface։ USB Blowing time։ 0.5 to 1.5 s Recommended sensor service life։ 2 years Detectable range։ 0.000 mg/L to 2.000 mg/L Accuracy։ Environment Temperature， 5 cm away from the air outlet， blow in the middle 0 to 0.15 mg/L, ≤ ±10% or ±0.03 mg/L 0.15 to 0.4 mg/L, ≤ ±15% above 0.4 mg/L , > ±15% Response time։ 23°C， 0 to 0.4mg/L， 4s Calibration period։ 1 year Detection precision։ 0.001 mg/L Power supply։ 5 VDC, 1 A Power consumption։ 2.5 W Working temperature։ -10 °C to 50 °C (14 °F to 122 °F)

DS-KAB673-A alcohol detection module, used with DS-K1T673
Series Face Recognition Terminal for alcohol detection
Sensor։ Electrochemical alcohol sensor
Measurement mode։ Non-contact measurement
Data interface։ USB
Blowing time։ 0.5 to 1.5 s
Recommended sensor service life։ 2 years
Detectable range։ 0.000 mg/L to 2.000 mg/L
Accuracy։ Environment Temperature， 5 cm away from the air
outlet， blow in the middle
0 to 0.15 mg/L, ≤ ±10% or ±0.03 mg/L
0.15 to 0.4 mg/L, ≤ ±15%
above 0.4 mg/L , > ±15%
Response time։ 23°C， 0 to 0.4mg/L， 4s
Calibration period։ 1 year
Detection precision։ 0.001 mg/L
Power supply։ 5 VDC, 1 A
Power consumption։ 2.5 W
Working temperature։ -10 °C to 50 °C (14 °F to 122 °F)
