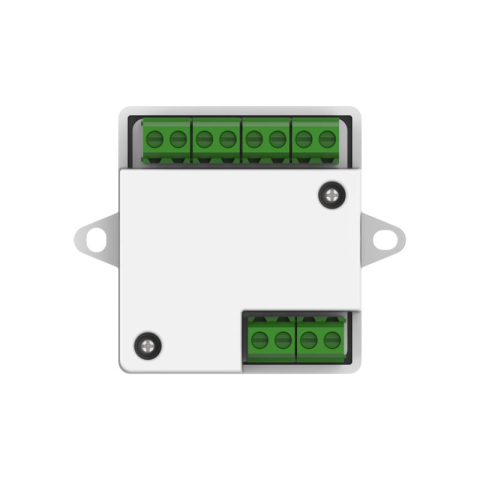

DS-K2M062

Բնութագրեր

Secure module. Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed Input interface: Door Magnetic×1 Output interface: Door Switch Relay×1 · Working conditions: Working temperature, -30°C to +60 °C; Working humidity, 0-90% (No condensing); Power supply 12VDC, 3W; · Dimensions and net weight: 53.95mm(W) x 43.5mm(H) x 15.5mm(D), 20.0g;

Secure module. Communicates with the access control terminal
via RS-485 to execute the commands from the terminal
including open door, close door, normally open and normally
closed
Input interface: Door Magnetic×1
Output interface: Door Switch Relay×1
· Working conditions: Working temperature, -30°C to +60
°C; Working humidity, 0-90% (No condensing); Power supply
12VDC, 3W;
· Dimensions and net weight: 53.95mm(W) x 43.5mm(H) x
15.5mm(D), 20.0g;
