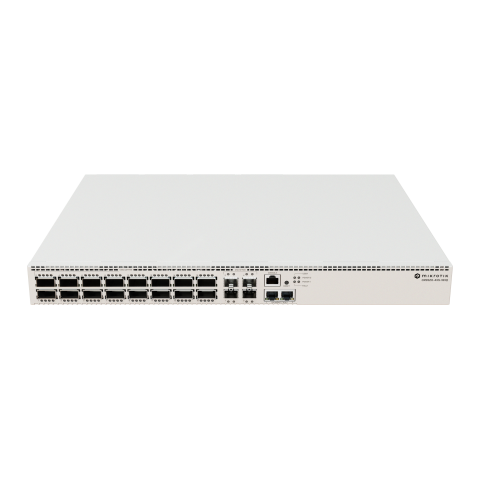

CRS520-4XS-16XQ-RM

Բնութագրեր

Architecture - ARM 64bit CPU - AL52400 CPU core count - 4 CPU nominal frequency - 2 GHz CPU Threads count- 4 Switch chip model - 98CX8410 RouterOS license - 5 Operating System - RouterOS v7 Size of RAM - 4 GB Storage size - 128 MB Storage type - NAND MTBF - Approximately 200'000 hours at 25C Tested ambient temperature - -20°C to 50°C Number of AC inputs - 2 AC input range - 100-240 Number of PSU slots - 2 Frequency (Hz) - 50-60 Max power consumption - 150 W (220 W with both PSUs) Max power consumption without attachments - 123 W Cooling type - 4 fans Number of 1G/2.5G/5G/10G Ethernet ports - 2 (supported: 10M/100M/1G/10G) Number of 25G SFP28 ports - 4 Number of 100G QSFP28 ports - 16

Architecture - ARM 64bit
CPU - AL52400
CPU core count - 4
CPU nominal frequency - 2 GHz
CPU Threads count- 4
Switch chip model - 98CX8410
RouterOS license - 5
Operating System - RouterOS v7
Size of RAM - 4 GB
Storage size - 128 MB
Storage type - NAND
MTBF - Approximately 200'000 hours at 25C
Tested ambient temperature -
-20°C to 50°C
Number of AC inputs - 2
AC input range - 100-240
Number of PSU slots - 2
Frequency (Hz) - 50-60
Max power consumption - 150 W (220 W with both PSUs)
Max power consumption without attachments - 123 W
Cooling type - 4 fans
Number of 1G/2.5G/5G/10G Ethernet ports - 2 (supported:
10M/100M/1G/10G)
Number of 25G SFP28 ports - 4
Number of 100G QSFP28 ports - 16
