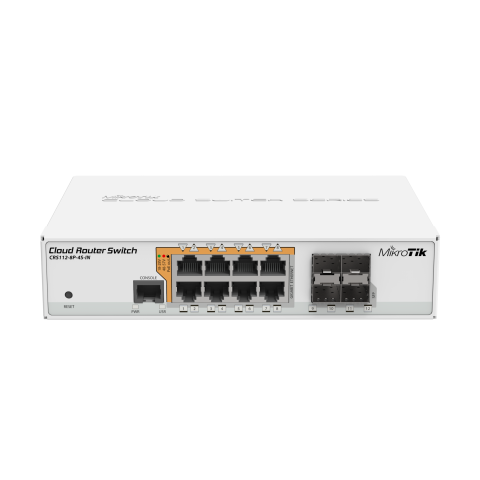

CRS112-8P-4S-IN

Բնութագրեր

Product code - CRS112-8P-4S-IN Architecture - MIPSBE CPU - QCA8511 CPU core count - 1 CPU nominal frequency - 400 MHz Switch chip model - QCA8511 Dimensions - 200 x 142 x 44 mm RouterOS license - 5 Operating System - RouterOS Size of RAM - 128 MB Storage size - 16 MB Storage type - FLASH MTBF - Approximately 200'000 hours at 25C Tested ambient temperature - -20°C to 60°C Number of DC inputs - 2 (DC jack) DC jack input Voltage - 18-28 V / 48-57 V Max power consumption - 160 W Max power consumption without attachments - 10 W Cooling type - Passive PoE-out ports - Ether1-Ether8 PoE out - 802.3af/at Low voltage PoE-Out current limit - 1 A High voltage PoE-Out current limit - 450 mA Max total out (A) - 2.8A (18V-28V) & 1.4A (48V-57V) A Ethernet - 10/100/1000 Ethernet ports - 8 Number of 1G Ethernet ports with PoE-out - 8

Product code - CRS112-8P-4S-IN
Architecture - MIPSBE
CPU - QCA8511
CPU core count - 1
CPU nominal frequency - 400 MHz
Switch chip model - QCA8511
Dimensions - 200 x 142 x 44 mm
RouterOS license - 5
Operating System - RouterOS
Size of RAM - 128 MB
Storage size - 16 MB
Storage type - FLASH
MTBF - Approximately 200'000 hours at 25C
Tested ambient temperature - -20°C to 60°C
Number of DC inputs - 2 (DC jack)
DC jack input Voltage - 18-28 V / 48-57 V
Max power consumption - 160 W
Max power consumption without attachments - 10 W
Cooling type - Passive
PoE-out ports - Ether1-Ether8
PoE out - 802.3af/at
Low voltage PoE-Out current limit - 1 A
High voltage PoE-Out current limit - 450 mA
Max total out (A) - 2.8A (18V-28V) & 1.4A (48V-57V) A
Ethernet - 10/100/1000
Ethernet ports - 8
Number of 1G Ethernet ports with PoE-out - 8
