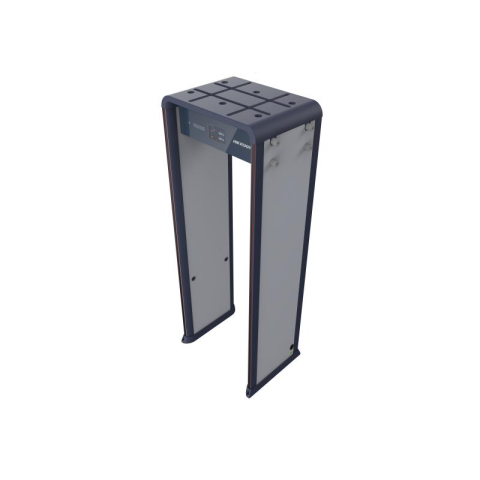

ISD-SMG572L

Характеристики

 Anti-interference: Set the frequency according to the surrounding environment to avoid interference, and multiple doors can be used normally when they are more than 20 cm side by side.  Detection Accuracy: One coin-size metal (approx. 25mm) can be effectively detected and there are not omission and cross reporting.  Throwing Objects Detection: Support detecting the metal object that are throwing through the detector.  Frequency Adjustment: Various frequencies are programmable to reduce the ambient interference.  Sensitivity Adjustment: Sensitivity (999 levels) can be adjusted according to the size of the metal to be detected.  Multi-Zone Alarm: Metals that are located at different area can be detectable simultaneously.  Network Connectivity: Allow user use a web browser to edit remotely the configuration parameter of the device. Additionally, it can be integrated with HCP or other platform for the aggregation of passenger flow and alarm data.  People Counting: Bi-lateral IR sensor can accurately detect the number of people passing through the detector.  Positioning Light: Two doorposts are equipped with LED light bar, can intuitively display the area where prohibited items are located.  Power-On Self-Diagnosis: When the device is power on, the system will start automatically to test itself and display the results.  Display: Support a 7-inch LCD color screen, can display important information such as alarm zones, passage numbers, alarm numbers, time / date etc.  Ultra-Low Detection Height: Can detect metals located higher than 1 cm above the ground.  Remote Control: Support controlling remotely via the infrared remote controller unit or web browser and make users more convenient to operate.  Modular Design: The components are modular designed and are easy to maintenance and transport.

 Anti-interference: Set the frequency according to the
surrounding environment to avoid interference, and multiple
doors can be used normally when they are more than 20 cm
side by side.
 Detection Accuracy: One coin-size metal (approx. 25mm)
can be effectively detected and there are not omission and
cross reporting.
 Throwing Objects Detection: Support detecting the metal
object that are throwing through the detector.
 Frequency Adjustment: Various frequencies are
programmable to reduce the ambient interference.
 Sensitivity Adjustment: Sensitivity (999 levels) can be
adjusted according to the size of the metal to be detected.
 Multi-Zone Alarm: Metals that are located at different
area can be detectable simultaneously.
 Network Connectivity: Allow user use a web browser to
edit remotely the configuration parameter of the device.
Additionally, it can be integrated with HCP or other
platform for the aggregation of passenger flow and alarm
data.
 People Counting: Bi-lateral IR sensor can accurately
detect the number of people passing through the detector.
 Positioning Light: Two doorposts are equipped with LED
light bar, can intuitively display the area where prohibited
items are located.
 Power-On Self-Diagnosis: When the device is power on,
the system will start automatically to test itself and
display the results.
 Display: Support a 7-inch LCD color screen, can display
important information such as alarm zones, passage numbers,
alarm numbers, time / date etc.
 Ultra-Low Detection Height: Can detect metals located
higher than 1 cm above the ground.
 Remote Control: Support controlling remotely via the
infrared remote controller unit or web browser and make
users more convenient to operate.
 Modular Design: The components are modular designed and
are easy to maintenance and transport.
