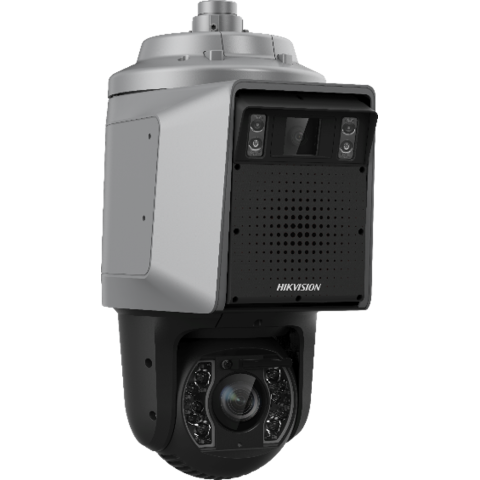

DS-2SR8C440I5XG2-LFW/SP/R15/28(C5F2)

Характеристики

Radar : Detection range Pedestrian detection 500m Speed measurement range -16m/s ~ 16m/s Horizontal angle Narrow beam: 15° Wide beam: 50° Vertical angle 30° Distance measurement accuracy 1m Angular measurement accuracy 1° Radar perimeter intelligence Region intrusion, boundary crossing detection Basic Sensor Type 【Panorama 1】1/1.8" progressive scan CMOS, 【Panorama 2】1/1.8" progressive scan CMOS, 【Details】1/1.8" progressive scan CMOS Maximum Resolution 【Panorama 1】2560*1440 【Panorama 2】2560*1440【Details】2560*1440 Minimum Illumination 【Panorama 1】Color: 0.0005 Lux @ (F1.6, AGC ON); 【Panorama 2】Color: 0.0005 Lux @ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR; 【Details】Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter 1/25s-1/30000s Day/Night Switching Mode Automatic ICR color to black Zoom 【Panorama 1】is not supported 【Panorama 2】optical zoom 5x 【Details】Optical zoom 40x, digital zoom 16x Slow Shutter Supported Lens Focal length 【Panorama 1】6 mm; 【Panorama 2】10~50 mm; 【Details】6.0~240 mm Field of view 【Panorama 1】58°; 【Panorama 2】40°~9°; 【Details】59-1.98° Focusing mode Semi-automatic, Manual, Automatic Maximum aperture number 【Panorama 1】F1.6; 【Panorama 2】F1.4; 【Details】F1.2 Optical zoom speed 【Panorama 1】Not supported; 【Panorama 2】approx. 1.8 s; 【Details】approx. 5.6 s Fill Light Types of Fill Light Laser Distance of Fill Light 【Panorama】: 200 meters 【Detail】: 500 meters Pan Tilt Unit Horizontal Range ["Panoramic"] 0°~270°; ["Details"] 0°~360° Vertical Range ["Panorama"] -11°~11° ["Details"] -20°~90° Horizontal Speed ["Panoramic"] Horizontal Jog Speed: 0.1°~10°/s, speed adjustable; ["Details"] Horizontal Jog Speed: 0.1°~210°/s, speed adjustable, Horizontal Preset Speed: 250°/s Vertical Speed ["Panorama"] Vertical Jog Speed: 0.1°~20°/s, speed adjustable; ["Details"] Vertical Jog Speed: 0.1°~150°/s, speed adjustable; Vertical Preset Speed: 90°/s Ratio of Zoom ["Panorama"] Not supported; ["Details"] Supported Number of Preset Points 300 Preset Point Video Freeze Supported Power supply DC: 36 V, 4.17A; maximum power consumption 90W (including 6W for panorama defrosting, 6W for external light supplement; 6W for detail defrosting, 12W for fill light) Dimensions Ø 391 mm × 530 mm Weight Approximately 16Kg Operating temperature and humidity -40°C to 70°C; humidity less than 95%

Radar :
Detection range Pedestrian detection 500m
Speed measurement range -16m/s ~ 16m/s
Horizontal angle Narrow beam: 15°
Wide beam: 50°
Vertical angle 30°
Distance measurement accuracy 1m
Angular measurement accuracy 1°
Radar perimeter intelligence Region intrusion, boundary
crossing detection

Basic
Sensor Type 【Panorama 1】1/1.8" progressive scan CMOS,
【Panorama 2】1/1.8" progressive scan
CMOS, 【Details】1/1.8" progressive scan CMOS

Maximum Resolution 【Panorama 1】2560*1440 【Panorama
2】2560*1440【Details】2560*1440

Minimum Illumination 【Panorama 1】Color: 0.0005 Lux @
(F1.6, AGC ON); 【Panorama 2】Color: 0.0005 Lux
@ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux
with IR; 【Details】Color:
0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC
ON), 0 Lux with IR

Shutter 1/25s-1/30000s

Day/Night Switching Mode Automatic ICR color to black

Zoom 【Panorama 1】is not supported 【Panorama
2】optical zoom 5x 【Details】Optical zoom 40x, digital
zoom 16x

Slow Shutter Supported

Lens
Focal length 【Panorama 1】6 mm; 【Panorama 2】10~50 mm;
【Details】6.0~240 mm

Field of view 【Panorama 1】58°; 【Panorama
2】40°~9°; 【Details】59-1.98°

Focusing mode Semi-automatic, Manual, Automatic

Maximum aperture number 【Panorama 1】F1.6; 【Panorama
2】F1.4; 【Details】F1.2

Optical zoom speed 【Panorama 1】Not supported;
【Panorama 2】approx. 1.8 s; 【Details】approx. 5.6 s

Fill Light
Types of Fill Light Laser
Distance of Fill Light 【Panorama】: 200 meters
【Detail】: 500 meters

Pan Tilt Unit
Horizontal Range ["Panoramic"] 0°~270°; ["Details"]
0°~360°
Vertical Range ["Panorama"] -11°~11° ["Details"]
-20°~90°
Horizontal Speed ["Panoramic"] Horizontal Jog Speed:
0.1°~10°/s, speed adjustable; ["Details"]
Horizontal Jog Speed: 0.1°~210°/s, speed adjustable,
Horizontal Preset Speed: 250°/s
Vertical Speed ["Panorama"] Vertical Jog Speed:
0.1°~20°/s, speed adjustable; ["Details"] Vertical Jog
Speed: 0.1°~150°/s, speed adjustable; Vertical Preset
Speed: 90°/s
Ratio of Zoom ["Panorama"] Not supported; ["Details"]
Supported
Number of Preset Points 300
Preset Point Video Freeze Supported

Power supply DC: 36 V, 4.17A; maximum power consumption 90W
(including 6W for panorama defrosting, 6W for external light
supplement; 6W for detail defrosting, 12W for fill light)
Dimensions Ø 391 mm × 530 mm
Weight Approximately 16Kg
Operating temperature and humidity
-40°C to 70°C; humidity less than 95%
