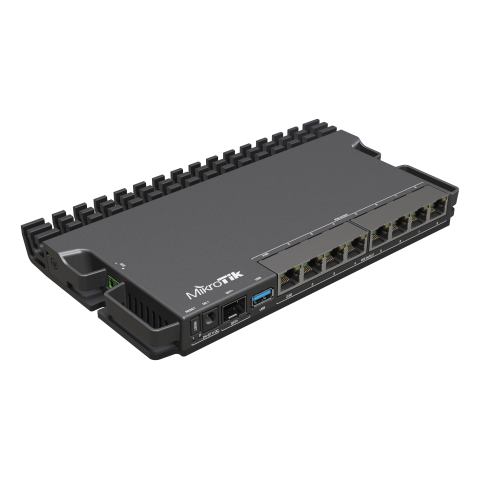

RB5009UPr+S+IN

Характеристики

Product code - RB5009UPr+S+IN Architecture - ARM 64bit CPU - 88F7040 CPU core count - 4 CPU nominal frequency - 350-1400 (auto) MHz CPU Threads count - 4 Switch chip model - 88E6393 RouterOS license - 5 Operating System - RouterOS v7 Size of RAM - 1 GB Storage size - 1 GB Storage type - NAND MTBF - Approximately 200'000 hours at 25C Tested ambient temperature - -40°C to 60°C Number of DC inputs - 3 (DC jack, PoE-IN, 2-pin terminal) DC jack input Voltage - 24-57 V 2-pin terminal input Voltage - 24-57 V Max power consumption - 150 W Max power consumption without attachments - 16 W PoE in - 802.3af/at (ether1), Mode B (ether2-ether8) Cooling type - Passive PoE in input Voltage - 24-57 V PoE-out ports - Ether1-Ether8 PoE out - 802.3af/at Low voltage PoE-Out current limit - 900 mA High voltage PoE-Out current limit - 440 mA Max total out (A) - 2.59 A Total output current - 2.28 Total output power - 130 10/100/1000 Ethernet ports - 7 Number of 1G Ethernet ports with Reverse PoE (PoE-in) - 7 Number of 2.5G Ethernet ports - 1 Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) - 1 SFP+ ports - 1 Number of USB ports - 1 USB Power Reset - Yes USB slot type - USB 3.0 type A Max USB current (A) - 1.5 CPU temperature monitor - Yes Current Monitor - Yes PCB temperature monitor - Yes Voltage Monitor - Yes Certification - CE, EAC, ROHS IP - 20

Product code - RB5009UPr+S+IN
Architecture - ARM 64bit
CPU - 88F7040
CPU core count - 4
CPU nominal frequency - 350-1400 (auto) MHz
CPU Threads count - 4
Switch chip model - 88E6393
RouterOS license - 5
Operating System - RouterOS v7
Size of RAM - 1 GB
Storage size - 1 GB
Storage type - NAND
MTBF - Approximately 200'000 hours at 25C
Tested ambient temperature - -40°C to 60°C
Number of DC inputs - 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage - 24-57 V
2-pin terminal input Voltage - 24-57 V
Max power consumption - 150 W
Max power consumption without attachments - 16 W
PoE in - 802.3af/at (ether1), Mode B (ether2-ether8)
Cooling type - Passive
PoE in input Voltage - 24-57 V
PoE-out ports - Ether1-Ether8
PoE out - 802.3af/at
Low voltage PoE-Out current limit - 900 mA
High voltage PoE-Out current limit - 440 mA
Max total out (A) - 2.59 A
Total output current - 2.28
Total output power - 130
10/100/1000 Ethernet ports - 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) - 7
Number of 2.5G Ethernet ports - 1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) - 1
SFP+ ports - 1
Number of USB ports - 1
USB Power Reset - Yes
USB slot type - USB 3.0 type A
Max USB current (A) - 1.5
CPU temperature monitor - Yes
Current Monitor - Yes
PCB temperature monitor - Yes
Voltage Monitor - Yes
Certification - CE, EAC, ROHS
IP - 20
